Linear Regression from Scratch using JAX

Linear Regression is one of the most fundamental algorithms in machine learning. In this post, we’ll implement it from scratch using JAX — Google’s high-performance numerical computing library that provides automatic differentiation and GPU/TPU acceleration.

What is Linear Regression?

Linear Regression models the relationship between a dependent variable and one or more independent variables by fitting a linear equation:

Assumptions

1. Linearity: The relationship between and the mean of is linear.
2. Homoscedasticity: The variance of residual is the same for any value of .
3. Independence: Observations are independent of each other.
4. Normality: For any fixed value of , is normally distributed.

---

Import Necessary Libraries

import jax
import numpy as np
import jax.numpy as jnp
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

from sklearn.compose import ColumnTransformer
from sklearn.pipeline import Pipeline
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import sklearn.metrics as skm

import warnings
warnings.filterwarnings('ignore')

---

Generate Random Dataset

First, let’s create a synthetic dataset to test our implementations. Notice how we properly split JAX PRNG keys to ensure each random operation uses a unique key:

seed = 32
num_samples = 100000
num_features = 5

# New JAX PRNG API (recommended)
key = jax.random.key(seed)

# Split keys for different random operations - JAX requires unique keys!
key, coeff_key, X_key, bias_key, noise_key = jax.random.split(key, 5)

random_coeff = jax.random.randint(coeff_key, shape=[num_features], minval=-10, maxval=10)

X = 2 * jax.random.normal(X_key, shape=(num_samples, num_features))

# Generate Random Bias and Coefficients
random_bais = jax.random.choice(bias_key, random_coeff, shape=(1,))
random_coeff = jax.random.choice(coeff_key, random_coeff, shape=(num_features,))

print(f"Random Bias: {random_bais}")
print(f"Random Coefficients: {random_coeff}")

coeff_features = []

# Construct each feature with random coeffcients choosen
for idx, coeff in enumerate(random_coeff):
  coeff_features.append(coeff * X[:, idx:idx+1])

# Print equation
equation = f"Y = {random_bais[0]}"
for idx, coeff in enumerate(random_coeff):
  equation += f" + {coeff} * X{idx+1}"
print(equation)

# Stack the features into a single matrix
coeff_features = jnp.hstack(coeff_features)

# Generate output from random data with unique noise key
y = random_bais + jnp.sum(coeff_features, axis=1) + jax.random.normal(noise_key, shape=(num_samples,))

Output:

Random Bias: [-8]
Random Coefficients: [ 5  5 -8 -2 -8]
Y = -8 + 5 * X1 + 5 * X2 + -8 * X3 + -2 * X4 + -8 * X5

---

Method 1: The Normal Equation

The Normal Equation provides a closed-form solution to find the optimal parameters:

• Computes the inverse of with complexity to
• May not be invertible if columns are linearly dependent — use pseudoinverse
• Slow for large features (100,000+), but scales linearly with samples

Using jax.jit

jax.jit compiles functions to XLA (Accelerated Linear Algebra) for optimized execution:

• Fusion: Multiple ops → single kernel (less memory transfer)
• Caching: First call compiles, subsequent calls are fast
• Hardware: Works on CPU, GPU, TPU

Implementation

import time
from functools import partial

class NormFit:
  """
  A class for fitting and predicting using the normal equation.
  Supports both JIT-compiled and non-JIT versions for performance comparison.

  Attributes:
      theta (numpy.ndarray): The parameters of the linear regression model.
      use_jit (bool): Whether to use JIT compilation.
  """

  def __init__(self, use_jit: bool = True):
    """
    Initialize the NormFit class with theta set to None.

    Args:
        use_jit (bool): If True, use JIT-compiled methods. Default True.
    """
    self.theta = None
    self.use_jit = use_jit

  @staticmethod
  def _fit_impl(X: jnp.ndarray, y: jnp.ndarray) -> jnp.ndarray:
    """Core fitting logic - can be JIT compiled."""
    X_b = jnp.hstack((jnp.ones((X.shape[0], 1)), X))  # Add a column of ones for the bias term
    theta = jnp.linalg.pinv(X_b) @ y  # Use pinv for better numerical stability
    return theta

  # JIT-compiled version
  _fit_jit = staticmethod(jax.jit(_fit_impl.__func__))

  @staticmethod
  def _predict_impl(X: jnp.ndarray, theta: jnp.ndarray) -> jnp.ndarray:
    """Core prediction logic - can be JIT compiled."""
    return X @ theta

  # JIT-compiled version
  _predict_jit = staticmethod(jax.jit(_predict_impl.__func__))

  def fit(self, X: jnp.ndarray, y: jnp.ndarray) -> jnp.ndarray:
    """
    Fit the linear regression model using the normal equation.

    Args:
        X (numpy.ndarray): The input features.
        y (numpy.ndarray): The target values.

    Returns:
        numpy.ndarray: The learned parameters (theta).
    """
    if self.use_jit:
      self.theta = self._fit_jit(X, y)
    else:
      self.theta = self._fit_impl(X, y)
    return self.theta

  def predict(self, X: jnp.ndarray) -> jnp.ndarray:
    """
    Predict the target values using the learned model.

    Args:
        X (numpy.ndarray): The input features.

    Returns:
        numpy.ndarray: The predicted target values.
    """
    # Add bias column for prediction
    X_b = jnp.hstack((jnp.ones((X.shape[0], 1)), X))
    if self.use_jit:
      return self._predict_jit(X_b, self.theta)
    else:
      return self._predict_impl(X_b, self.theta)

Performance Comparison: JIT vs Non-JIT

# Performance comparison: JIT vs Non-JIT
def benchmark_normfit(X, y, use_jit, num_runs=5):
    """Benchmark NormFit with or without JIT."""
    model = NormFit(use_jit=use_jit)

    # Warm-up run (important for JIT to compile)
    _ = model.fit(X, y)

    # Timed runs
    times = []
    for _ in range(num_runs):
        start = time.perf_counter()
        _ = model.fit(X, y)
        end = time.perf_counter()
        times.append(end - start)

    return np.mean(times), np.std(times)

# Benchmark with JIT
jit_mean, jit_std = benchmark_normfit(X, y, use_jit=True)
print(f"JIT-compiled:     {jit_mean*1000:.4f} ± {jit_std*1000:.4f} ms")

# Benchmark without JIT
no_jit_mean, no_jit_std = benchmark_normfit(X, y, use_jit=False)
print(f"Non-JIT:          {no_jit_mean*1000:.4f} ± {no_jit_std*1000:.4f} ms")

# Speedup
speedup = no_jit_mean / jit_mean
print(f"\nSpeedup: {speedup:.2f}x faster with JIT")

Output:

JIT-compiled:     0.4926 ± 0.0223 ms
Non-JIT:          1.8181 ± 0.1614 ms

Speedup: 3.69x faster with JIT

Fit Normal Equation to Data

normfit = NormFit()
theta = normfit.fit(X, y)

predicted_eq = f"Y_ = {jnp.round(theta[0], 1)}"
for idx, coeff in enumerate(theta[1:]):
  predicted_eq += f" + {jnp.round(coeff, 1)} * X{idx+1}"

print(predicted_eq)

Output:

Y_ = -8.0 + 5.0 * X1 + 5.0 * X2 + -8.0 * X3 + -2.0 * X4 + -8.0 * X5

---

Method 2: Gradient Descent

Gradient Descent tweaks parameters iteratively to minimize a cost function — like going downhill in fog by following the steepest slope.

The Math

Learning Rate: Too small = slow convergence. Too large = divergence.

Using jax.lax.scan

Gradient descent has sequential dependencies: W₀ → W₁ → W₂ → ...

Problem with Python loops: JAX traces them, unrolling causes slow compilation.

jax.lax.scan solves this:

• Carries state (W) forward between iterations
• How scan iterates: lax.scan iterates over the leading axis of the input, feeding one batch per step.
• Expected data shape: (num_batches, batch_size, num_features)
• Why use lax.scan: It replaces Python loops with a JAX-friendly loop that works well with jit and XLA.
• Returns both final state and collected outputs

def scan_fn(carry, inputs):
    W, step = carry           # State from previous iteration
    X_batch, y_batch = inputs # Current batch
    W_new = W - lr * gradient # Update weights
    return (W_new, step + 1), loss  # (new_carry, output)

(W_final, _), losses = jax.lax.scan(scan_fn, (W_init, 0), (X_batches, y_batches))

Key: scan_fn processes one step, scan runs it over all batches efficiently.

Full Implementation with Mini-Batch and Learning Rate Scheduling

class LinearRegression:
  """
  Linear Regression model implementation using JAX with JIT and jax.lax.scan.
  Supports both JIT-compiled and non-JIT versions for performance comparison.

  Attributes:
      key (jnp.ndarray): Random key for weight initialization.
      lr (float): Learning rate for gradient descent.
      epochs (int): Number of training epochs.
      W (jnp.ndarray): Weights of the linear regression model.
      use_jit (bool): Whether to use JIT compilation.
  """

  def __init__(
      self,
      key: jnp.ndarray,
      batch_size: int = 32,
      lr: float = 0.01,
      epochs: int = 1000,
      ridge_alpha: float = 0.0,
      use_jit: bool = True):
    self.key = key
    self.init_lr = lr
    self.epochs = epochs
    self.batch_size = batch_size
    self.ridge_alpha = ridge_alpha
    self.use_jit = use_jit
    self.W: jnp.ndarray = None
    self.decay = 0.001
    self.scheduler_progress = []
    self.loss_progress = []

  # ============== Core computation functions (can be JIT compiled) ==============

  @staticmethod
  def _batch_forward_impl(W: jnp.ndarray, X_batched: jnp.ndarray, y_batched: jnp.ndarray,
                          epoch: int, init_lr: float, decay: float, ridge_alpha: float):
    """
    Process all batches using jax.lax.scan (JIT-compatible).
    X_batched: (num_batches, batch_size, num_features + 1)
    y_batched: (num_batches, batch_size, 1)
    """
    num_batches = X_batched.shape[0]
    batch_size = X_batched.shape[1]

    def scan_fn(carry, inputs):
      W, step = carry
      X_batch, y_batch = inputs

      # Forward Pass
      y_pred = X_batch @ W

      # Gradient: (num_features + 1, batch_size) @ (batch_size, 1) -> (num_features + 1, 1)
      dW = (2 / batch_size) * (X_batch.T @ (y_pred - y_batch)) + ridge_alpha * W

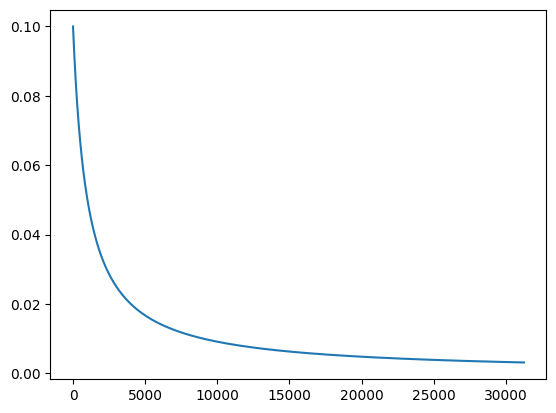

      # Learning rate schedule
      num_steps = num_batches * epoch + step
      lr = init_lr / (1. + decay * num_steps)

      # Update Weights
      W_new = W - lr * dW

      # Loss: MSE + L2 regularization
      loss = (1/batch_size) * jnp.sum((y_pred - y_batch) ** 2) + (ridge_alpha/2) * jnp.sum(W**2)

      return (W_new, step + 1), (loss, lr)

    (W_final, _), (losses, lrs) = jax.lax.scan(scan_fn, (W, 0), (X_batched, y_batched))
    return W_final, losses, lrs

  # JIT-compiled version with static arguments
  _batch_forward_jit = staticmethod(
      jax.jit(_batch_forward_impl.__func__, static_argnums=(4, 5, 6))
  )

  @staticmethod
  def _batch_forward_no_jit(W: jnp.ndarray, X_batched: jnp.ndarray, y_batched: jnp.ndarray,
                             epoch: int, init_lr: float, decay: float, ridge_alpha: float):
    """
    Process all batches using Python loop (no JIT, for comparison).
    """
    num_batches = X_batched.shape[0]
    batch_size = X_batched.shape[1]

    losses = []
    lrs = []

    for step in range(num_batches):
      X_batch = X_batched[step]
      y_batch = y_batched[step]

      # Forward Pass
      y_pred = X_batch @ W

      # Gradient
      dW = (2 / batch_size) * (X_batch.T @ (y_pred - y_batch)) + ridge_alpha * W

      # Learning rate schedule
      num_steps = num_batches * epoch + step
      lr = init_lr / (1. + decay * num_steps)

      # Update Weights
      W = W - lr * dW

      # Loss
      loss = (1/batch_size) * jnp.sum((y_pred - y_batch) ** 2) + (ridge_alpha/2) * jnp.sum(W**2)
      losses.append(loss)
      lrs.append(lr)

    return W, jnp.array(losses), jnp.array(lrs)

  @staticmethod
  def _predict_impl(W: jnp.ndarray, X: jnp.ndarray) -> jnp.ndarray:
    """Core prediction logic."""
    return X @ W

  # JIT-compiled prediction
  _predict_jit = staticmethod(jax.jit(_predict_impl.__func__))

  # ============== Public API ==============

  def fit(self, X: jnp.ndarray, y: jnp.ndarray, verbose: bool = True) -> None:
    """
    Fit the linear regression model to the training data.

    Args:
        X (jnp.ndarray): Input features of shape (num_samples, num_features).
        y (jnp.ndarray): Target values of shape (num_samples,) or (num_samples, 1).
        verbose (bool): Whether to print progress. Default True.
    """
    num_samples = X.shape[0]
    num_features = X.shape[1]

    # Initialize weights
    self.W = jax.random.normal(self.key, shape=(num_features + 1, 1))  # (num_features + bias term, 1)

    # Add bias column
    X = jnp.hstack((jnp.ones(shape=(num_samples, 1)), X))  # (add column for bias term which will be one)
    y = y.reshape(-1, 1)  # Ensure y has shape (num_samples, 1)

    # Compute batch dimensions
    batch_comp = (num_samples // self.batch_size) * self.batch_size

    # Handle remainder samples by padding
    if num_samples != batch_comp:
      # Pad to make divisible by batch_size
      pad_size = self.batch_size - (num_samples - batch_comp)
      X_padded = jnp.vstack([X, jnp.zeros((pad_size, X.shape[1]))])
      y_padded = jnp.vstack([y, jnp.zeros((pad_size, 1))])
      num_batches = (num_samples + pad_size) // self.batch_size
    else:
      X_padded = X
      y_padded = y
      num_batches = num_samples // self.batch_size

    # Reshape for batched processing
    X_batched = X_padded.reshape(num_batches, self.batch_size, -1)
    y_batched = y_padded.reshape(num_batches, self.batch_size, -1)

    # Select forward function based on JIT setting
    forward_fn = self._batch_forward_jit if self.use_jit else self._batch_forward_no_jit

    # Training loop - epochs handled in Python, batches in JAX
    all_losses = []
    all_lrs = []

    for epoch in range(self.epochs):
      self.W, epoch_losses, epoch_lrs = forward_fn(
          self.W, X_batched, y_batched, epoch,
          self.init_lr, self.decay, self.ridge_alpha
      )

      avg_loss = jnp.mean(epoch_losses)
      all_losses.append(float(avg_loss))
      all_lrs.extend(epoch_lrs.tolist())
      if verbose:
        print(f"Epoch {epoch + 1}: Loss {avg_loss:.6f}")

    self.loss_progress = all_losses
    self.scheduler_progress = all_lrs

  def predict(self, X: jnp.ndarray) -> jnp.ndarray:
    """
    Predict the target values for the given input features.

    Args:
        X (jnp.ndarray): Input features of shape (num_samples, num_features).

    Returns:
        jnp.ndarray: Predicted target values of shape (num_samples, 1).
    """
    X = jnp.hstack((jnp.ones(shape=(X.shape[0], 1)), X))  # Add bias term
    if self.use_jit:
      return self._predict_jit(self.W, X)
    else:
      return self._predict_impl(self.W, X)

Performance Comparison: LinearRegression JIT vs Non-JIT

# Performance comparison: LinearRegression JIT vs Non-JIT
# Re-generate large dataset for fair comparison
key_data = jax.random.key(42)
key_data, X_key_bench, noise_key_bench = jax.random.split(key_data, 3)

X_bench = 2 * jax.random.normal(X_key_bench, shape=(100000, 5))
y_bench = 4.0 + jnp.sum(X_bench * jnp.array([1, 2, 3, 4, 5]), axis=1) + jax.random.normal(noise_key_bench, shape=(100000,))

def benchmark_linear_regression(X, y, key, use_jit, num_runs=3, epochs=3):
    """Benchmark LinearRegression with or without JIT."""
    times = []

    for i in range(num_runs):
        # Create new key for each run
        run_key = jax.random.fold_in(key, i)
        model = LinearRegression(run_key, lr=0.1, batch_size=16, epochs=epochs, use_jit=use_jit)

        start = time.perf_counter()
        model.fit(X, y, verbose=False)
        end = time.perf_counter()
        times.append(end - start)

    return np.mean(times), np.std(times)

print(f"Dataset size: {X_bench.shape[0]:,} samples, {X_bench.shape[1]} features")
print(f"Batch size: 16, Epochs: 3\n")

# Benchmark with JIT (warm-up first)
key_bench = jax.random.key(999)
print("Warming up JIT...")
warmup_model = LinearRegression(key_bench, lr=0.1, batch_size=16, epochs=1, use_jit=True)
warmup_model.fit(X_bench, y_bench, verbose=False)

# Now benchmark
jit_mean, jit_std = benchmark_linear_regression(X_bench, y_bench, key_bench, use_jit=True)
print(f"JIT-compiled:     {jit_mean*1000:.2f} ± {jit_std*1000:.2f} ms")

# Benchmark without JIT
no_jit_mean, no_jit_std = benchmark_linear_regression(X_bench, y_bench, key_bench, use_jit=False)
print(f"Non-JIT:          {no_jit_mean*1000:.2f} ± {no_jit_std*1000:.2f} ms")

# Speedup
speedup = no_jit_mean / jit_mean
print(f"\n🚀 Speedup: {speedup:.2f}x faster with JIT + jax.lax.scan")

Output:

Dataset size: 100,000 samples, 5 features
Batch size: 16, Epochs: 3

Warming up JIT...
JIT-compiled:     171.02 ± 36.75 ms
Non-JIT:          66033.34 ± 346.28 ms

🚀 Speedup: 386.10x faster with JIT + jax.lax.scan

Train and Evaluate

# Split key for model initialization
key, model_key = jax.random.split(key)
lr = LinearRegression(model_key, lr=0.1, batch_size=16, epochs=5)

# Fit the model
lr.fit(X, y)

# Plot learning rate schedule
sns.lineplot(lr.scheduler_progress)
plt.title("Learning Rate Schedule")
plt.show()

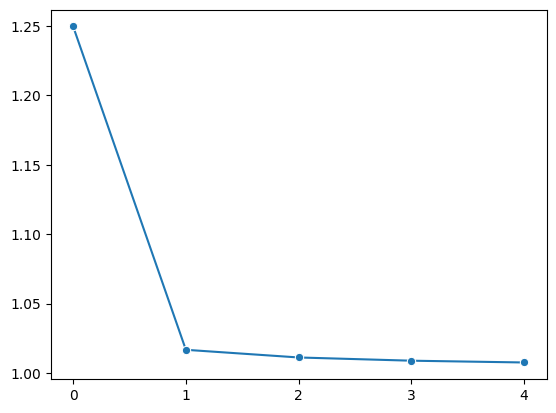

# Plot loss
sns.lineplot(lr.loss_progress, marker='o')
plt.xticks([i for i in range(5)])
plt.title("Training Loss")
plt.show()

# Check coefficients
predicted_eq = f"Y_ = {jnp.round(lr.W[0, 0], 1)}"
for idx, coeff in enumerate(lr.W[1:, 0]):
  predicted_eq += f" + {jnp.round(coeff, 1)} * X{idx+1}"

print(predicted_eq)

Output:

Epoch 1: Loss 12.492534
Epoch 2: Loss 1.391944
Epoch 3: Loss 1.054662
Epoch 4: Loss 1.020378
Epoch 5: Loss 0.999142

Y_ = -8.0 + 5.0 * X1 + 5.0 * X2 + -8.0 * X3 + -2.0 * X4 + -8.0 * X5

---

Convex Functions

In mathematics, a real-valued function is called convex if the line segment between any two distinct points on the graph of the function lies above the graph between the two points.

Let be convex subset of real vector space and let

Then is called convex if and only if:

• For all and :


Properties of Convex Functions:

• Any local minima is global minima.
• Where it exists, the Hessian (second partial derivative) is positive semi-definite.
• Sum of two convex functions is a convex function.
• Max of two convex functions is a convex function.

---

California House Price Prediction

Let’s apply our implementation to a real dataset:

try:
    df = pd.read_csv("./sample_data/california_housing_train.csv") # works in colab
except:
    df = pd.read_csv("/kaggle/input/california-housing-data/california_housing_train.csv") # works in kaggle
df.head()

Check for null values

df.isna().sum(axis=0)

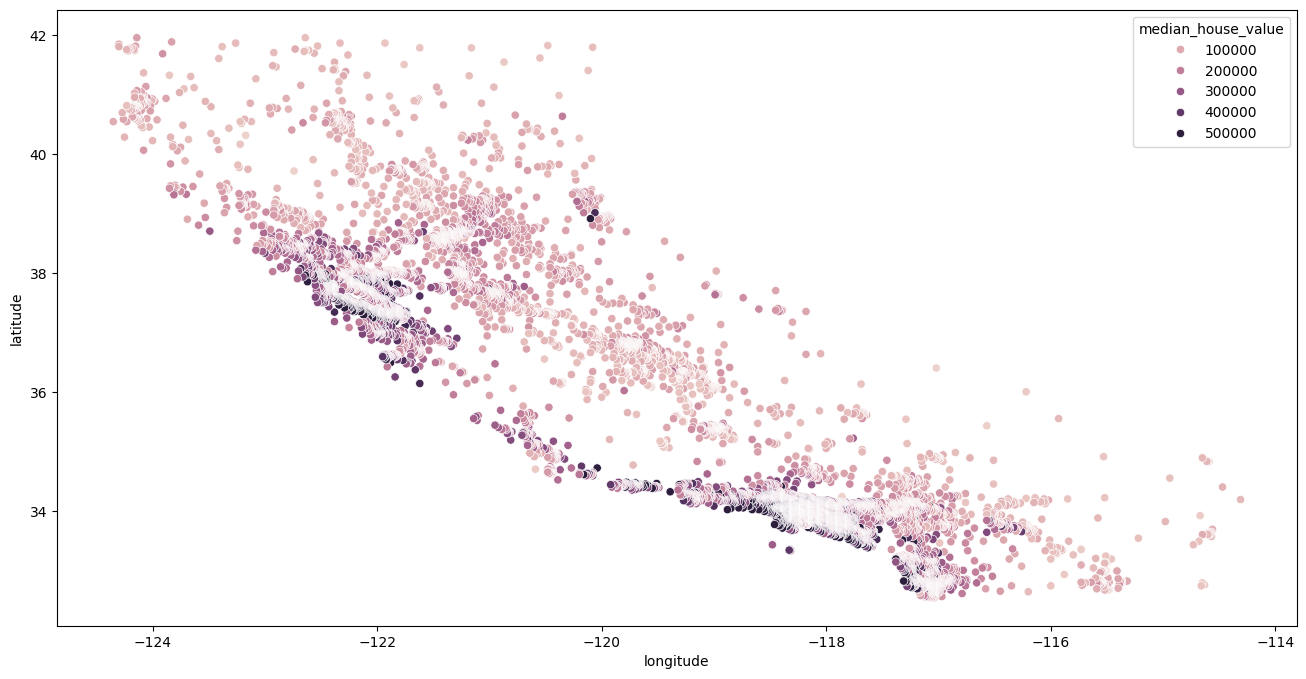

Let’s plot latitude and longitude with house median values

plt.figure(figsize=(16, 8))
sns.scatterplot(x=df['longitude'], y=df['latitude'], hue=df['median_house_value'])
plt.show()

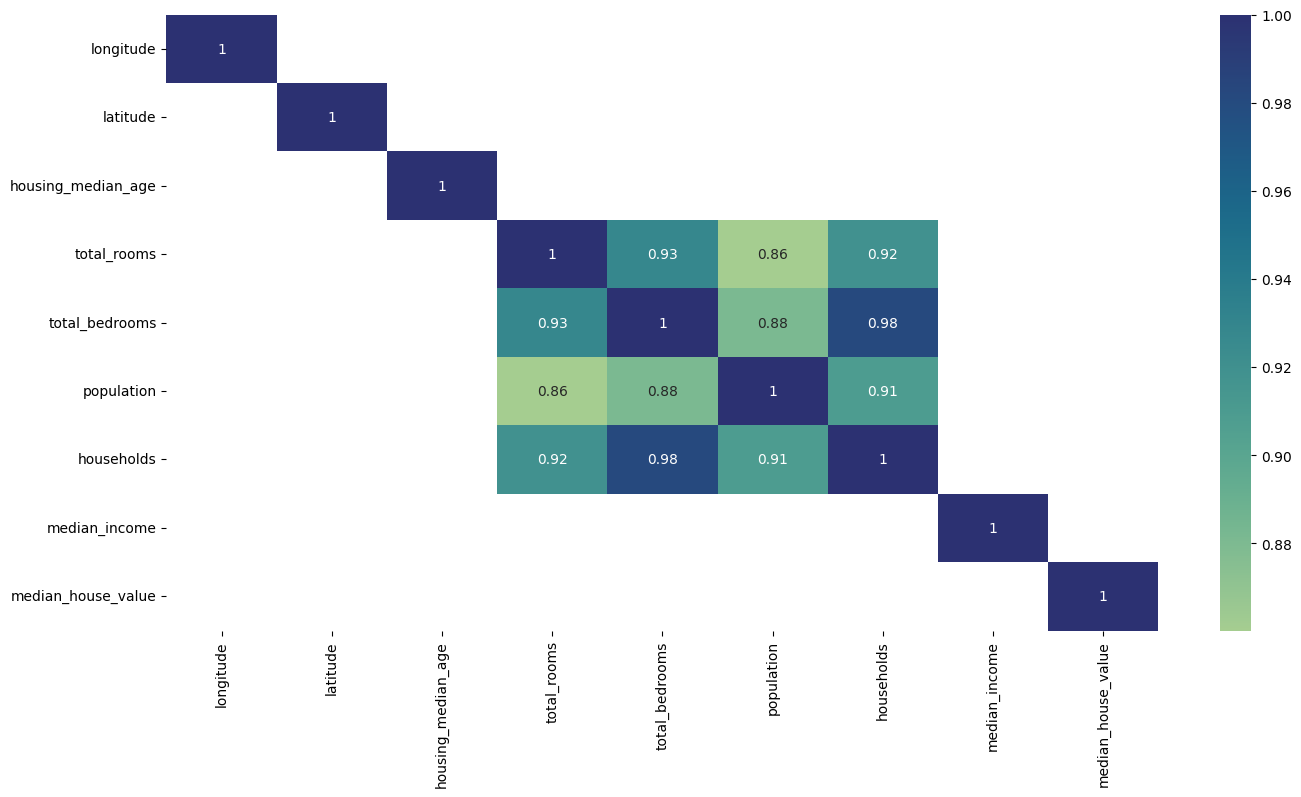

Let’s look at the correlation matrix

plt.figure(figsize=(16, 8))
sns.heatmap(df.corr()[df.corr() >= 0.7], annot=True, cmap="crest")
plt.show()

Get feature and target columns

feature_columns = list(df.drop('median_house_value', axis=1).columns)
target_column = ["median_house_value"]

Let’s split the data to train and validation

train_df, val_df, train_y, val_y = train_test_split(
    df.drop('median_house_value', axis=1),
    df['median_house_value'],
    random_state=42)

Pipelines for features and target separately

features_scaling_pipe = Pipeline(
     steps=[
         ('Standardization', StandardScaler())
     ]
)

target_scaling_pipe = Pipeline(
     steps=[
         ('Standardization', StandardScaler())
     ]
)

Standardize the data

Here to observe is that never fit_transform with validation data which will be leakage of the data.

X_train = features_scaling_pipe.fit_transform(train_df)
y_train = target_scaling_pipe.fit_transform(train_y.values.reshape(-1, 1))

Train the model using Linear Regression

# Split key for California housing model
key, california_key = jax.random.split(key)
lr = LinearRegression(california_key, lr=0.1, epochs=10, batch_size=16)

lr.fit(X_train, y_train)

X_train.shape[0] // 16

Look how Learning Rate change happened

• Here Number of Training Samples are 12750.
• Perfect fit if batched using 16 batch size is 12750 // 16 which will be 796 steps in each epoch + 1 epoch for remaining samples left after batching.
• So now we have (796 + 1) * 10 epoch it will 7970 exact points of learning rates.
• For each batch the learning rate is decayed as per the learning rate schedule:


sns.lineplot(lr.scheduler_progress)
plt.show()

Plot the loss for each epoch

sns.lineplot(lr.loss_progress, marker='o')
plt.xticks([i for i in range(10)])
plt.show()

Let’s validate the model

X_val = features_scaling_pipe.transform(val_df)
y_val = target_scaling_pipe.transform(val_y.values.reshape(-1, 1))

y_val = target_scaling_pipe.inverse_transform(y_val.reshape(-1, 1))
y_pred = target_scaling_pipe.inverse_transform(lr.predict(X_val))

Check RMSE

$$MSE = \frac{1}{m} \sum_{i=1}^{m} (y^{i}{pred} - y{i})^{2}$$

As MSE will be very high due to high values of the house prices

print(f"Root Mean Squared Error:{skm.mean_squared_error(y_val, y_pred, squared=False)}")

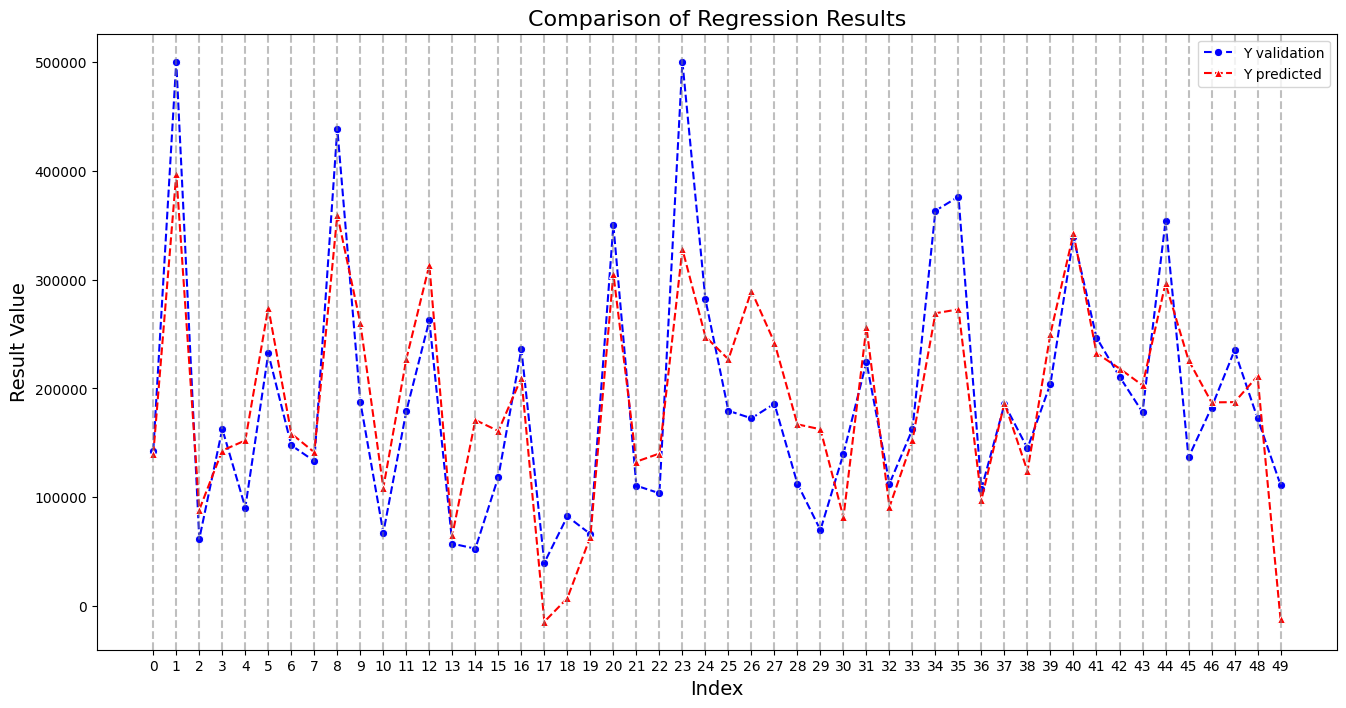

Let’s plot upto 50 predictions using seaborn

idxs = val_df.reset_index(drop=True).index

points = 50

plt.figure(figsize=(16, 8))
ax = sns.lineplot(x=idxs[:points],
                  y=y_val.reshape(-1)[:points],
                  color='b',
                  marker='o',
                  label='Y validation',
                  linestyle='--')
sns.lineplot(x=idxs[:points],
             y=y_pred.reshape(-1)[:points],
             color='r',
             marker='^',
             label='Y predicted',
             linestyle='--')


# Add vertical and horizontal lines
for idx in idxs[:points]:
  ax.axvline(idx, color='gray', linestyle='--', alpha=0.5)


# Add gridlines at each index
ax.set_xticks(idxs[:points])

# Add labels and title
plt.xlabel('Index', fontsize=14)
plt.ylabel('Result Value', fontsize=14)
plt.title('Comparison of Regression Results', fontsize=16)

# Add legend
plt.legend()

plt.show()

Squared

• An R-Squared value shows how well the model predicts the outcome of the dependent variable. R-Squared values range from 0 to 1.
• An R-Squared value of 0 means that the model explains or predicts 0% of the relationship between the dependent and independent variables.

print(f"{skm.r2_score(y_val, y_pred)*100}% of the variance in the dependent variable can be explained by the independent variable(s)")

---

Polynomial Regression

• While the Normal Equation can only perform Linear Regression, the Gradient Descent algorithms can be used to train many other models, as we will see.
• Note that when there are multiple features, Polynomial Regression is capable of finding relationships between features (which is something a plain Linear Regression model cannot do).
• This is made possible by the fact that PolynomialFeatures also adds all combinations of features up to the given degree.
• For example, if there were two features a and b, PolynomialFeatures with degree=3 would not only add the features , , , and , but also the combinations , , and .

Note: PolynomialFeatures(degree=d) transforms an array containing n features into an array containing features, where is the factorial of , equal to . Beware of the combinatorial explosion of the number of features!

# Split key for polynomial regression data
key, poly_X_key = jax.random.split(key)
m = 1000
X = 6 * jax.random.uniform(poly_X_key, (m, 1)) - 3
y = 0.5 * X**2 + X + 2 + np.random.randn(m, 1)

Plot the data

sns.scatterplot(x=X[:, 0], y=y[:, 0])
plt.show()

Transform input X to include polynomial are squared data

from sklearn.preprocessing import PolynomialFeatures

poly_features = PolynomialFeatures(degree=2, include_bias=False)
X_poly = poly_features.fit_transform(X)

Let’s train the Linear Regression

# Split key for polynomial model
key, poly_model_key = jax.random.split(key)
lr = LinearRegression(
    key=poly_model_key,
    batch_size=32,
    lr=0.01,
    epochs=25,
)

lr.fit(X_poly, y)

Let’s check the fit line

predicted_eq = f"Y_ = {jnp.round(lr.W[0, 0], 1)} + {lr.W[1, 0]} * X + {lr.W[2, 0]} * X^2"
print(predicted_eq)

y_pred = lr.predict(X_poly)

sns.scatterplot(x=X[:, 0], y=y[:, 0])
sns.lineplot(x=X[:, 0], y=y_pred[:, 0], color="red")
plt.show()

---

Ridge Regression

• It is important to scale the data (e.g., using a StandardScaler) before performing Ridge Regression, as it is sensitive to the scale of the input features. This is true of most regularized models

# Split key for ridge regression data
key, ridge_X_key = jax.random.split(key)
X = jax.random.uniform(ridge_X_key, (100, 1))
y = 4 + 3 * X + np.random.randn(100, 1)

General Linear Regression

# Split key for ridge model with alpha=0
key, ridge_key_0 = jax.random.split(key)
lr = LinearRegression(
    key=ridge_key_0,
    batch_size=32,
    lr=0.1,
    epochs=10,
)
lr.fit(X, y)
y_pred_zero = lr.predict(X)

predicted_eq = f"Y_ = {jnp.round(lr.W[0, 0], 1)} + {lr.W[1, 0]} * X"
print(predicted_eq)

Ridge Regression with

# Split key for ridge model with alpha=1
key, ridge_key_1 = jax.random.split(key)
lr = LinearRegression(
    key=ridge_key_1,
    batch_size=32,
    lr=0.1,
    epochs=10,
    ridge_alpha=1
)
lr.fit(X, y)
y_pred_ten = lr.predict(X)

predicted_eq = f"Y_ = {jnp.round(lr.W[0, 0], 1)} + {lr.W[1, 0]} * X"
print(predicted_eq)

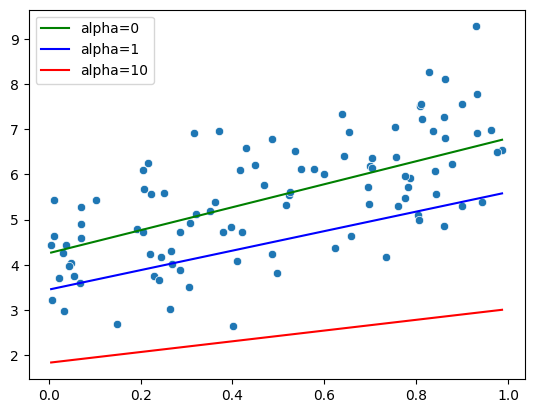

sns.scatterplot(x=X[:, 0], y=y[:, 0])
sns.lineplot(x=X[:, 0], y=y_pred_zero[:, 0], color="green", label="alpha=0")
sns.lineplot(x=X[:, 0], y=y_pred_ten[:, 0], color="blue", label="alpha=1")
sns.lineplot(x=X[:, 0], y=y_pred_hundred[:, 0], color="red", label="alpha=10")
plt.legend()
plt.show()

---

Key Takeaways

Method	Pros	Cons
Normal Equation	Closed-form, exact solution	Slow for large feature sets
Gradient Descent	Scales well, flexible	Requires tuning hyperparameters
Ridge Regression	Prevents overfitting	Adds bias to estimates
Polynomial	Captures non-linearity	Feature explosion

---

References

1. Math Differential Calculus

2. Hands-On Machine Learning

3. ML Exercises
